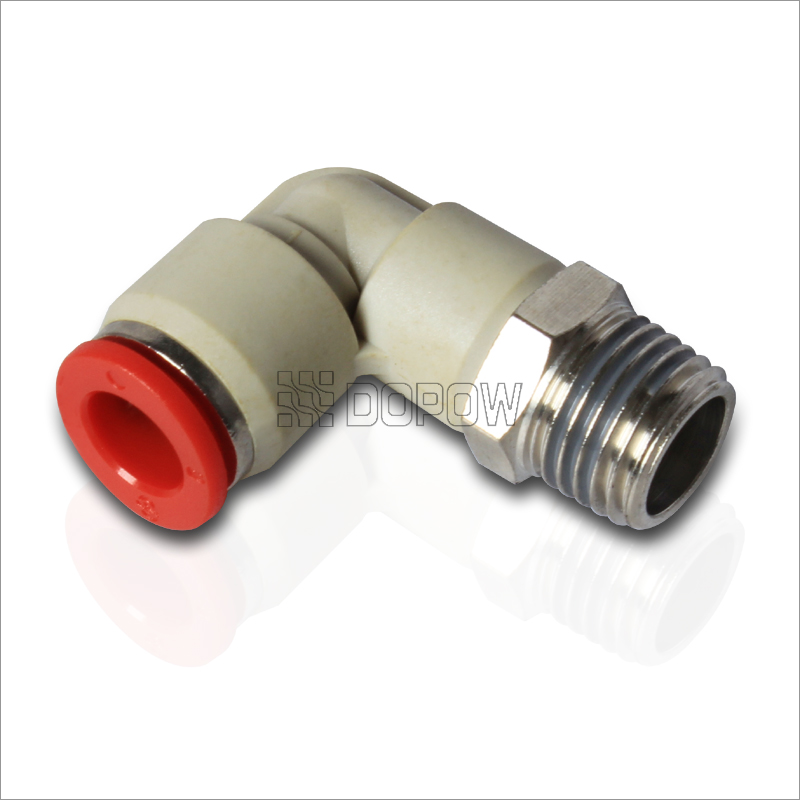

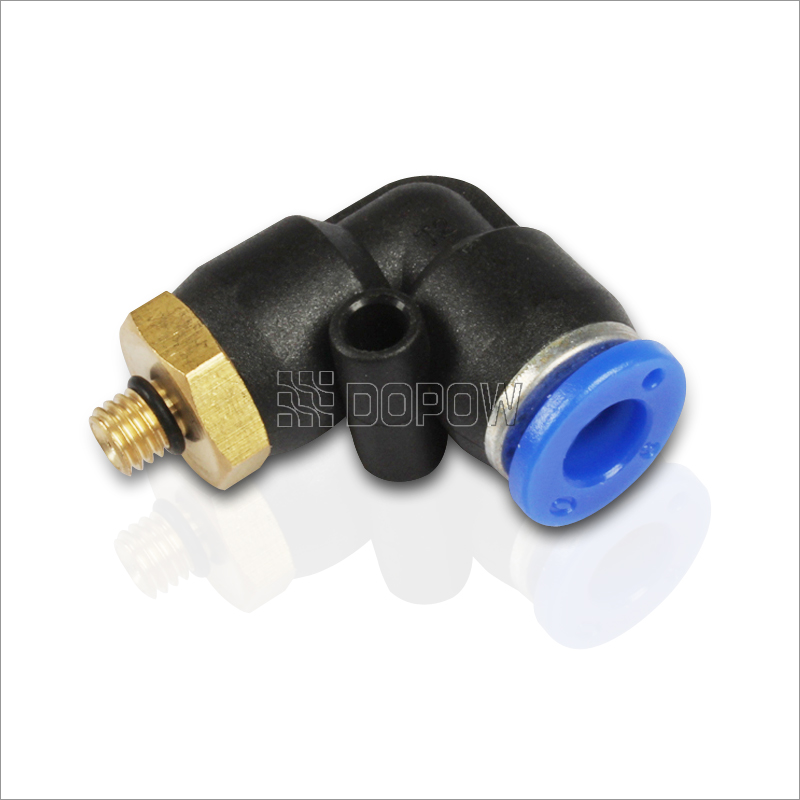

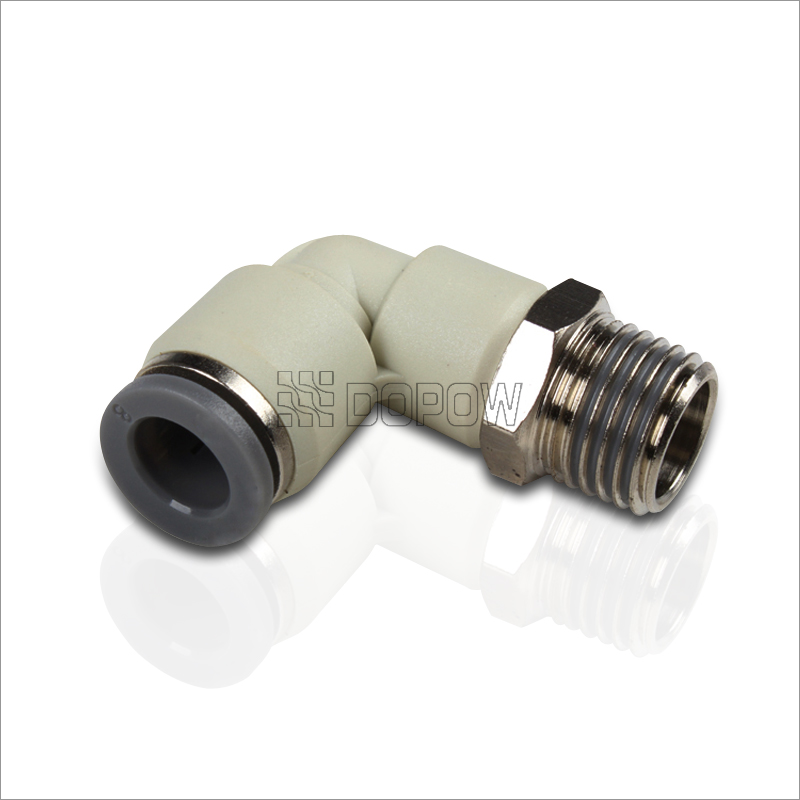

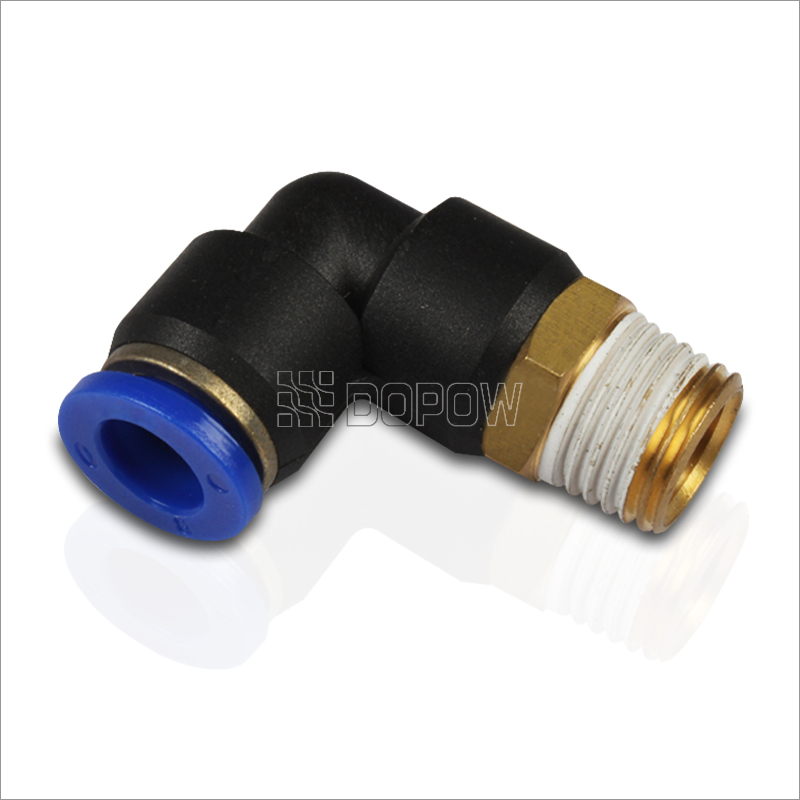

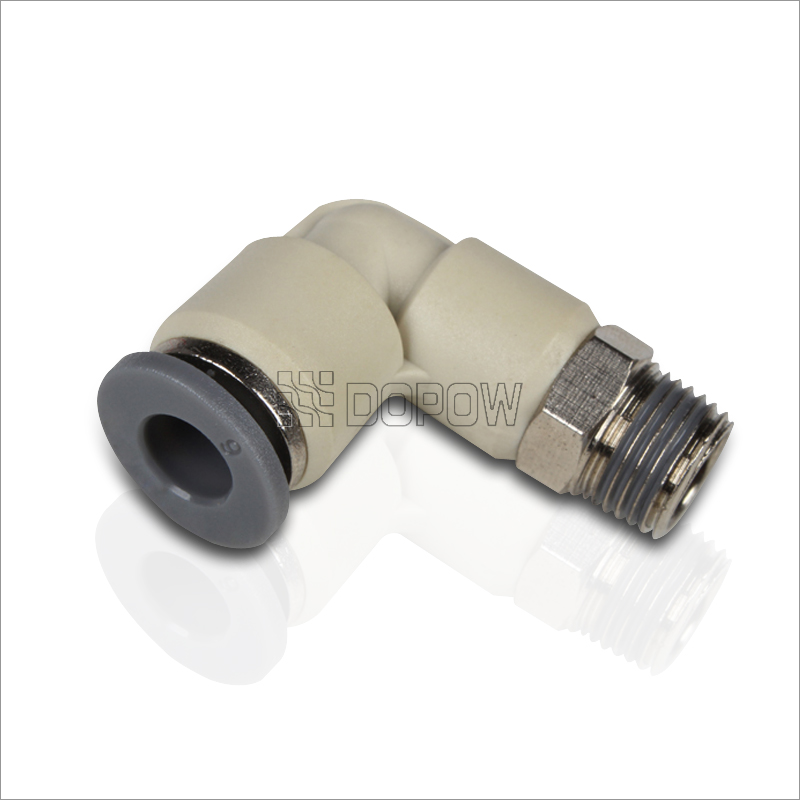

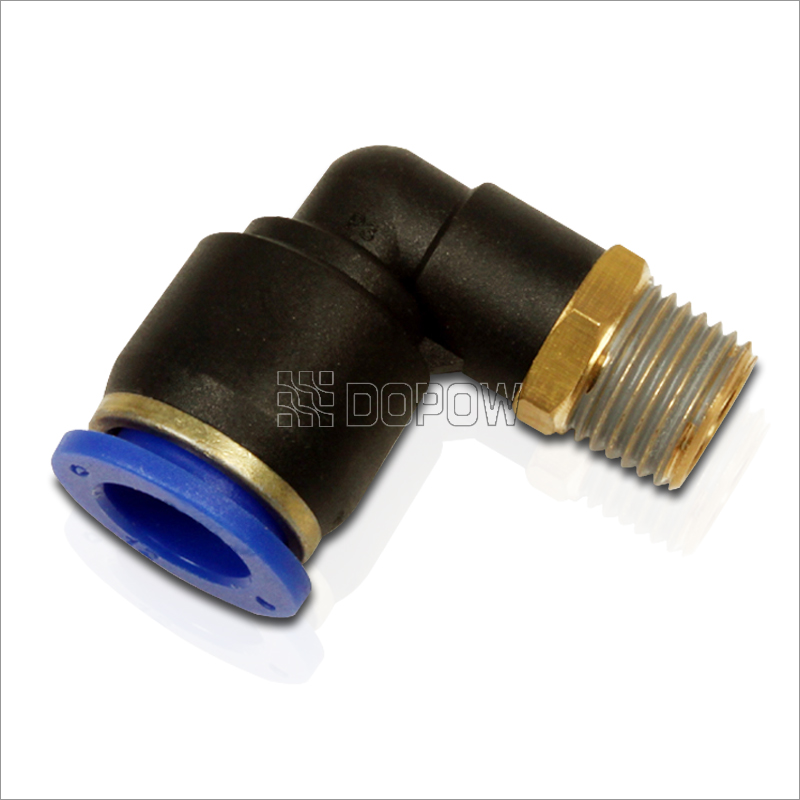

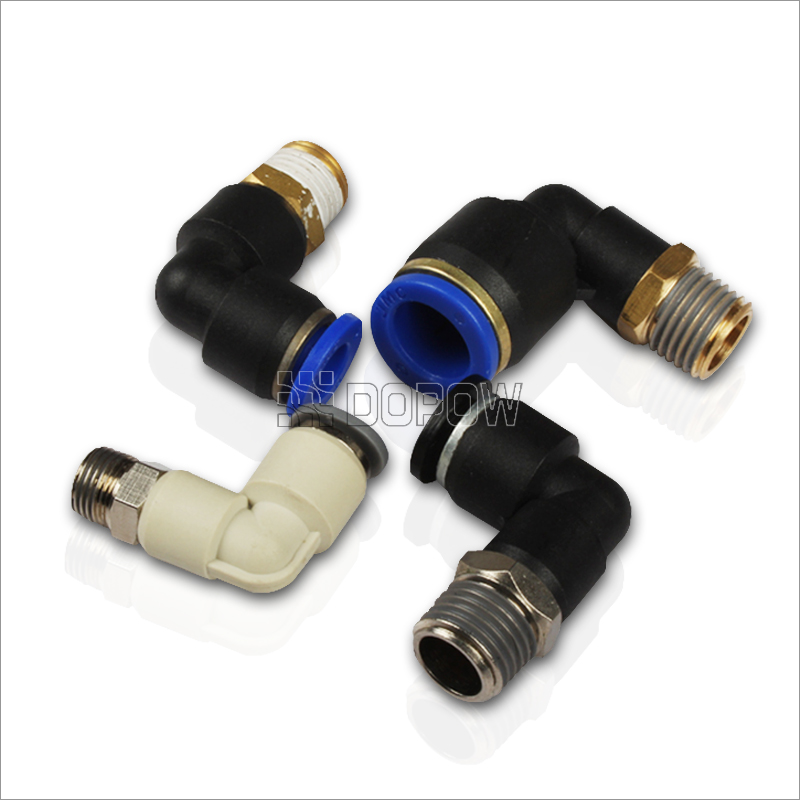

PL 快插接頭 L型快速接頭 氣管氣缸電磁閥接頭 直角
PL 快插接頭 L型快速接頭 氣管氣缸電磁閥接頭 ?直角
1. 全檢–在8公斤的壓力下經過漏氣檢測，確保產品穩定.
2.耐高壓–30公斤壓力下保持兩個小時不會出現任何問題.
3.?所有錐管螺紋預涂聚四氟乙烯防漏膠，密封性能好
4.溫度范圍:?0~1.0?MPa?(0~150?PSI).
5.壓力范圍:?0~60oC?(32~140oF).
| 型號 | ФD | R | A | E | X | Y | C |
| PL4-M5 | 4 | M5 | 4 | 19.5 | 11.6 | 10.1 | 16 |
| PL4-01 | 4 | R1/8 | 7.5 | ||||
| PL4-02 | 4 | R1/4 | 9.5 | ||||
| PL6-M5 | 6 | M5 | 4 | 20.5 | 14 | 12.5 | 17 |
| PL6-01 | 6 | R1/8 | 7.5 | 12.5 | |||
| PL6-02 | 6 | R1/4 | 9.5 | 12.5 | |||
| PL6-03 | 6 | R3/8 | 10 | 12.5 | |||
| PL6-04 | 6 | R1/2 | 13 | 12.5 | |||
| PL8-01 | 8 | R1/8 | 7.5 | 21 | 16 | 14 | 18 |
| PL8-02 | 8 | R1/4 | 9.5 | ||||
| PL8-03 | 8 | R3/8 | 10 | ||||
| PL8-04 | 8 | R1/2 | 13 | ||||
| PL10-01 | 10 | R1/8 | 7.5 | 26 | 19 | 16.5 | 20.5 |
| PL10-02 | 10 | R1/4 | 9.5 | ||||
| PL10-03 | 10 | R3/8 | 10 | ||||
| PL10-04 | 10 | R1/2 | 13 | ||||
| PL12-02 | 12 | R1/4 | 9.5 | 27.5 | 21.5 | 18.5 | 22.5 |
| PL12-03 | 12 | R3/8 | 10 | ||||
| PL12-04 | 12 | R1/2 | 13 | ||||
| PL16-03 | 16 | R3/8 | 10.5 | 32.5 | 27 | 24 | 24 |
| PL16-04 | 16 | R1/2 | 13 | 32.5 | 27 | 24 | 24 |
